Plasma cutting has long been one of the easiest and most efficient ways to cut metal. Whether you're a seasoned fabricator or just getting started, achieving clean cuts often comes down to a few simple techniques and setup adjustments.

If you're using a Hypertherm Powermax SYNC® system, taking advantage of the right cartridge and cutting practices can help improve cut quality, reduce dross, and maximize consumable life.

Start with the Right Cartridge

One of the biggest advantages of the Powermax SYNC platform is its simplified cartridge system. Rather than assembling multiple consumable components, SYNC cartridges combine everything into a single piece for quick installation and easy changeover.

Before starting your cut, make sure you're using the cartridge best suited for your application:

• Drag Cutting Cartridges – Ideal for general-purpose handheld cutting.
• FineCut® Cartridges – Designed for thinner materials and detailed work where precision is critical.

Choosing the correct cartridge helps ensure optimal performance and cut quality from the start.

Check Your Settings

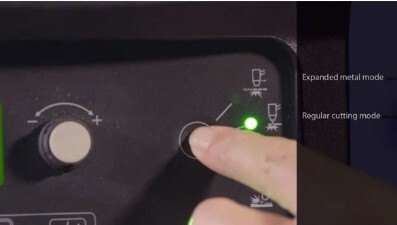

Powermax SYNC systems automatically recognize the installed cartridge and adjust amperage settings accordingly. However, certain applications—such as cutting expanded metal—may require selecting a specific operating mode on the machine.

Taking a few moments to verify your settings before cutting can save time and improve results.

Don't Forget PPE

Before striking an arc, always wear the appropriate personal protective equipment:

• Welding gloves
• Safety glasses or face protection
• Protective clothing
• Hearing protection when required

Safety should always be the first step in any cutting operation.

Torch Position Matters

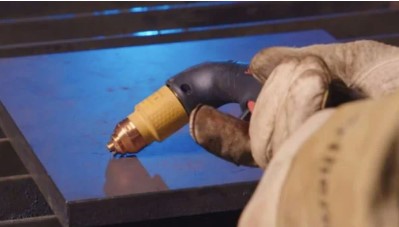

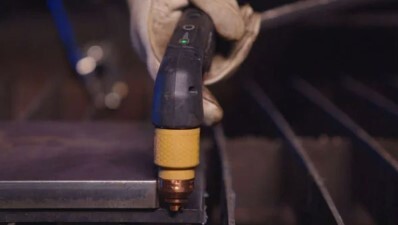

For standard edge-start cuts, hold the torch perpendicular to the workpiece. Maintaining a consistent angle helps create a cleaner cut edge and promotes better arc stability.

One of the benefits of drag-cutting cartridges is that the torch can rest directly on the material during cutting, making it easier to maintain control and follow cut lines accurately.

Finding the Right Travel Speed

Travel speed plays a major role in cut quality.

A simple way to judge your speed is by watching the sparks beneath the material:

Moving Too Fast

If sparks are spraying back toward the top of the plate, the torch is likely moving too quickly. The arc doesn't have enough time to fully penetrate the material.

Moving Too Slow

If sparks are falling straight down, the torch may be moving too slowly. Excess heat can create additional dross and reduce cut quality.

The Sweet Spot

For the cleanest cuts, aim for sparks exiting below the material at a slight angle. This generally indicates efficient material removal with minimal dross formation.

Tips for Piercing Material

When piercing rather than edge-starting:

1. Begin with the torch held slightly above the workpiece at an angle.
2. Start the arc.
3. Gradually rotate the torch into a perpendicular position.
4. Wait until the arc fully penetrates the material before beginning your cut.

This technique helps direct molten metal away from the torch and can extend cartridge life.

Small Adjustments, Better Results

Many plasma cutting issues aren't caused by the machine—they're caused by setup, torch position, or travel speed. Taking a few extra seconds to verify cartridge selection and refine cutting technique can dramatically improve cut quality and efficiency.

Whether you're cutting brackets in the shop, fabricating structural components, or tackling repair work in the field, the Hypertherm Powermax SYNC platform is designed to make plasma cutting easier, more consistent, and more productive.
