Victor Equipment

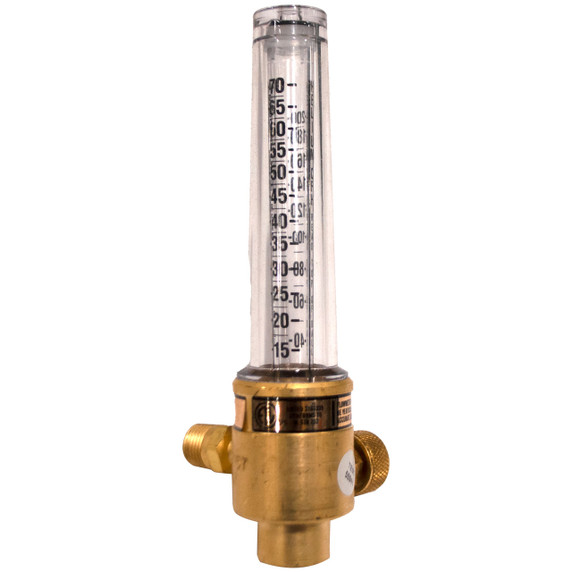

Victor 1000-0263 FM 157 Argon, Helium Heavy Duty Flow Meter Regulator
SKU
VI1000-0263
In Stock:
0
Usually Ships In:
14 business day(s)
$196.99
-
Free Shipping
on all ground orders -
We're Here to Help
call us at 507-494-5169 -
Safe & Secure
certified secure site
Victor Equipment
Victor 1000-0263 FM 157 Argon, Helium Heavy Duty Flow Meter Regulator
$196.99
• Gas flow measurement in SCFH
• MIG / TIG applications
• Flowtube and outer tube are made of impact resistant lexan for severe applications
• Pressure compensated for low surge requirements
• Cover tube contains overpressure protection
Victor 1000-0263 FM 157 Medium Capacity Two Gas Calibration Flow meter offers 15 -65 SCFH, 40 - 200 SCFH flow range for argon and helium respectively. Flow meter with 25 PSIG inlet pressure features 1/4" NPT(M) inlet fitting and 5/8"-18 RH(F) outlet fitting. It is ideal for MIG/TIG welding and cover tube of the flow meter consist of overpressure protection. Flow tube and outer tube of the flow meter are made of impact resistant Lexan. Victor has a full line of flow products for virtually any application, whether it is welding, industrial or laboratory use. Victor has a flow meter, flow gauge or surge limiting regulator for your needs. Victor offers a range of products for the delivery of shielding gas in the arc welding process or any other application where gas flow rates, verses delivery pressure, are the preliminary consideration. These products are available for pure or mixed gases and for working with either high pressure cylinders or low pressure "piped shop" environments. Offering Includes: Regulators with Flow Meter, Flow Meters, Flow Gauge Regulators, Single or two stage design, Surge Limiting Regulator. Design/Construction, Gas flow measurement in SCFH. MIG/TIG applications. Flow tube and outer tube are made of impact resistant Lexan for severe applications. Pressure compensated for low surge requirements. Cover tube contains overpressure protection. ALl Victor flow meters are back pressure compensated to ensure accurate readings at all times, even if line restrictions are present. All flow meters are calibrated to operate at 25 PSIG inlet pressure to minimize surge, except the FM 200 which is calibrated to operate at 80 PSIG. WARNING: not designed for cylinder use. Do Not exceed calibrated inlet pressure.
Series:
Division: Heavy Duty
Gas: Inert
Delivery Range: 15-65 Argon, 40-200 Helium
Max Inlet Pressure: 25
CGA Inlet Connection : 1/4" NPT M
CGA Oulet Connection: 5/8" - 18 (RH Female)
Click Here for Warranty Details
• MIG / TIG applications
• Flowtube and outer tube are made of impact resistant lexan for severe applications
• Pressure compensated for low surge requirements
• Cover tube contains overpressure protection
Victor 1000-0263 FM 157 Medium Capacity Two Gas Calibration Flow meter offers 15 -65 SCFH, 40 - 200 SCFH flow range for argon and helium respectively. Flow meter with 25 PSIG inlet pressure features 1/4" NPT(M) inlet fitting and 5/8"-18 RH(F) outlet fitting. It is ideal for MIG/TIG welding and cover tube of the flow meter consist of overpressure protection. Flow tube and outer tube of the flow meter are made of impact resistant Lexan. Victor has a full line of flow products for virtually any application, whether it is welding, industrial or laboratory use. Victor has a flow meter, flow gauge or surge limiting regulator for your needs. Victor offers a range of products for the delivery of shielding gas in the arc welding process or any other application where gas flow rates, verses delivery pressure, are the preliminary consideration. These products are available for pure or mixed gases and for working with either high pressure cylinders or low pressure "piped shop" environments. Offering Includes: Regulators with Flow Meter, Flow Meters, Flow Gauge Regulators, Single or two stage design, Surge Limiting Regulator. Design/Construction, Gas flow measurement in SCFH. MIG/TIG applications. Flow tube and outer tube are made of impact resistant Lexan for severe applications. Pressure compensated for low surge requirements. Cover tube contains overpressure protection. ALl Victor flow meters are back pressure compensated to ensure accurate readings at all times, even if line restrictions are present. All flow meters are calibrated to operate at 25 PSIG inlet pressure to minimize surge, except the FM 200 which is calibrated to operate at 80 PSIG. WARNING: not designed for cylinder use. Do Not exceed calibrated inlet pressure.
Series:
Division: Heavy Duty
Gas: Inert
Delivery Range: 15-65 Argon, 40-200 Helium
Max Inlet Pressure: 25
CGA Inlet Connection : 1/4" NPT M
CGA Oulet Connection: 5/8" - 18 (RH Female)
Click Here for Warranty Details
