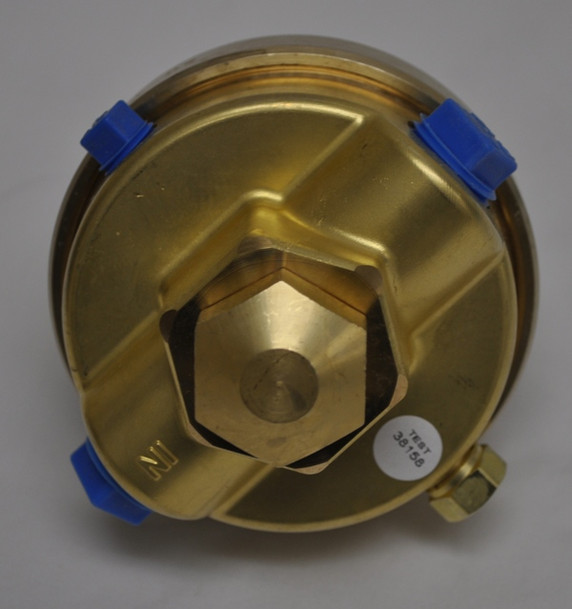

Victor 0780-1188 DL 700 Dome Load Line Regulator

• Forged brass body and housing cap
• Stem type seat mechanism, fabric reinforced neoprene
• Remotely controlled pressure adjustment
• Designed for cutting machines or applications that demand very consistent delivery pressures
• Gas Service: Nitrous Oxide, Oxygen, Air, Inert, CO2

Victor offers high performance products for non-cylinder applications such as automated cutting, bulk gas system delivery and other pipeline applications where high flow maintaining consistent pressure is critical. WARNING: Not or Use On Cylinders. Design/Construction, Forged brass body and housing cap. Stem type seat mechanism fabric reinforced neoprene. 1/2" NPT (F) inlet and outlet ports. Externally dome loaded. Remotely controlled pressure adjusted. Designed for cutting machines or applications that demand very consistent delivery pressures. The DL 700 line regulator is externally loaded for remote control of gas. The delivery pressure on the DL 700 is controlled by the pressure supplied from a remote pilot regulator.

Series:  DL 700

Division:  Dome Load Line

Gas:  Nitrous Oxide

Delivery Range:  5-125

Max Inlet Pressure:  500

CGA Inlet Connection :  1/2" NPT F

CGA Oulet Connection:  1/2" NPT (Female)
