• Process capabilities include MIG and flux cored Steel: 24 ga. - 3/16 in., Stainless Steel: 22 ga. - 3/16", Steel Flux-cored: 18 ga. - 3/16 in", Aluminum: 18 - 14 ga., DC Lift-Arc™ TIG: 24 ga.–1/4 in. steel
• Simple and intuative interface with segment display allows for easy set-up and fine-tuning
• Auto-Set™ offers predefined weld settings to increase ease of use and ensure that the job is set right.
• Smooth-Start™ provides a smooth, spatter-free start.
• Angled cast-aluminum drive system with calibrated tension knob creates consistent feeding and easy setup.
The Millermatic® 142 lets you make the professional-quality MIG welds you expect from a Miller® machine, even if you don’t weld every day. Setting the right parameters is fast and simple — plus it’s easy to move, has a long duty cycle and can run on generator power. Auto-Set™ automatically provides predefined weld settings for mild steel and aluminum while infinite voltage control allows the flexibility to manually set your own parameters with a digital readout. Angled cast-aluminum drive system with calibrated tension knob creates consistent feeding and easy setup. Quick Select™ drive roll makes setup quicker by offering three grooves — two for different size solid wire and a third for flux-cored wire. Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected, eliminating the need for a switch. Smooth-Start™ provides a smooth, spatter-free start. It’s the best-starting machine in the small MIG machine category. Thermal overload protection shuts down unit if airflow is blocked or duty cycle is exceeded. Automatically resets when unit cools. Fan-On-Demand™ cooling system only operates when needed, reducing noise, energy use and the amount of contaminants pulled though the machine. Uses 4- or 8-inch (102 or 203 mm) spools and can be set up to weld with .024–.030 inch (0.6–0.8 mm) solid wire and .030–.035 inch (0.8–0.9 mm) flux-cored wire. Includes a Miller welding cart with a 7" cylinder holder (301239). Processes:
MIG (GMAW), Flux Cored (FCAW),Application:
Light Fabrication, MRO, Auto body, Hobby Input Power:
102 V Amperage Range:
30–140 A (120V) Weld Capacity:
3/8" (120V), 1/4" (120V) Weight:
9.75(w) x 14.5(h) x (d)Phase:
Single PhaseComes Complete With:

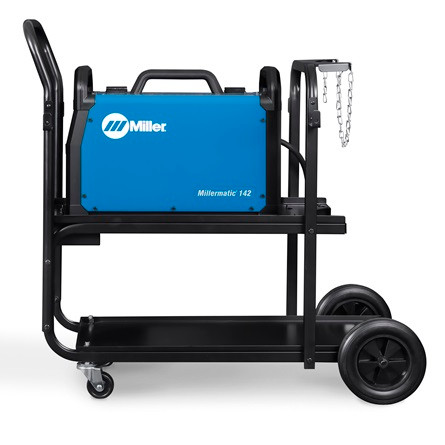

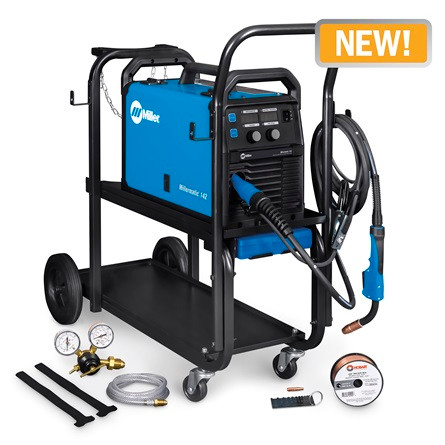

Millermatic® 142 with 6.5 ft. (2 m) power cord and plug, 10 ft (3 m) MDX-100 MIG gun with Bernard AccuLock MDX consumables for .030 (08 mm) wire, 10 ft (3 m) work cable with clamp, Argon and AR/CO2 mix regulator/flow gauge with hose, Hobart® spool of .030 in. (0.8 mm) solid wire, 2 contact tips for .030 in (0.8 mm) wire, Quick Select™ drive rolls for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire, Material thickness gauge #229895, Hook-and-loop cord wraps and Welding cart (301239).
https://www.millerwelds.com/-/media/miller-electric/import/specsheets/file/dc1241-millermatic-142--english.pdfClick Here for Miller True Blue Warranty Details
