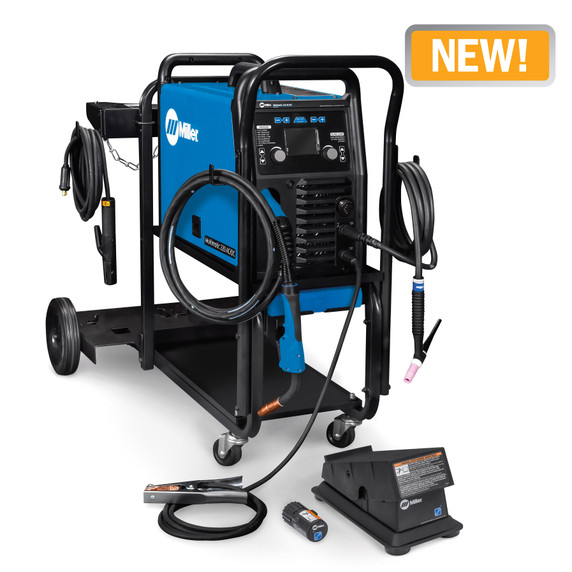

Miller 951000104 Multimatic 220 AC/DC with Dual Cylinder Welding Cart and Wireless Foot Pedal

• QuickTech™ makes setup and changing processes easy with automatic polarity, process and setting recall
• Pro-Set™ eliminates the guesswork when setting weld parameters
• Multi-Voltage Plug (MVP): Allows for connection to 120- or 240-volt receptacles without tools
• Dependable Arc Starts: Provides high-frequency, non-contact arc starting to eliminate tungsten and material contamination
• Generator compatible. Full output provided when powered by generators with 10,000-watt (10 kW) output or higher

Ideal for hobbyists and small shops, the Multimatic 220 AC/DC with wireless foot pedal and dual cylinder cart gives you the freedom to weld any process — MIG, flux-cored, stick and AC/DC TIG — with one portable, powerful, easy-to-use machine. Setup and switching processes are fast and easy, all while ensuring excellent arc quality using either 120- or 240-volt power.

Included dual cylinder rack cart offers portability while holding two gas cylinders.

MIG welds up to 3/8" thickness (24 ga. steel or 18 ga. aluminum; DC Stick welds up to 3/8" thickness (16 ga. steel); and AC/DC TIG welds up to 1/4" thickness (24 ga. steel and aluminum).

Processes:  MIG (GMAW), Flux-cored (FCAW), DC stick (SMAW), AC/DC TIG (GTAW), Pulsed TIG (GTAW-P)

Application:  Light Fabrication, Maintenance and Repair, Auto Body, Farm/Home

Input Power:  120/240 V, 1-phase, 50/60 Hz

Amperage Range:  MIG: 30–230 A | DC Stick: 30–200 A | AC/DC TIG: 20–210 A

Rated Output:  MIG/ flux-cored: (120 V) 105 A at 19.2 V, 60% duty cycle | (240 V) 200 A at 24 V, 20% duty cycle and 170 A at 21.5 V, 40% duty cycle
TIG: (120 V) 130 A at 15.2 V, 40% duty cycle | (240V) 210 A at 18.4 V, 20% duty cycle
Stick: (120 V) 90 A at 23.6 V, 40% duty cycle | (240 V) 200 A at 28.4 V, 15% duty cycle

Weld Capacity:  3/8"

Weight:  56 lbs. (machine only)

Dimensions:  11.25"(w) x 17.5"(h) x 21.5"(d)

Phase:  Single Phase

Inlcudes:  Multimatic® 220 AC/DC | 10 ft. (3 m) MDX™-100 MIG Welding Gun | 13 ft. (4 m) cable with electrode holder and 25 mm Dinse-style connector | 12.5 ft. (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25 mm Dinse-style connector | 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector | 6.5 ft. (2 m) power cord with MVP™ plugs for 120V and 240V | Wireless foot control | Two flow gauge regulators and gas hoses for argon or AR/CO2 mix | Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire | Two contact tips for .030 in. (0.8 mm) wire | AK2C TIG torch accessory kit | Hook-and-loop cord wraps | Material thickness gauge #229895 | Dual-cylinder rack cart #951770
