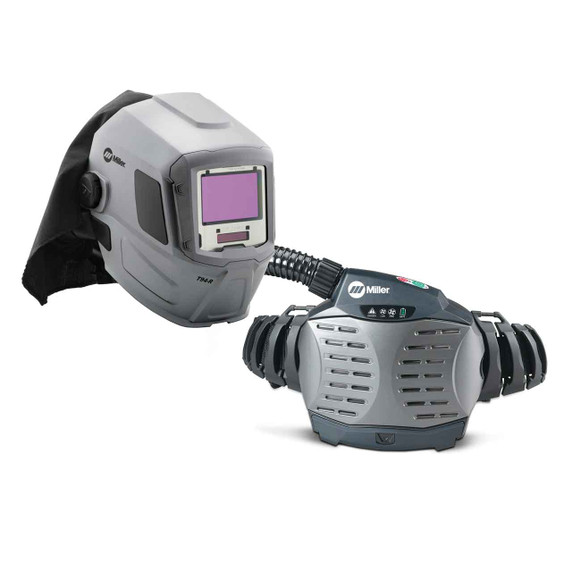

Miller 264573 PAPR System with T94-R Welding Helmet

• Patent-pending Dualtec™ manifold system optimizes helmet balance and sound, while six-point air distribution system maximizes cooling through targeted air placement
• Integrated shoulder straps reduce fatigue over long shifts by distributing system weight to alleviate lower back pain
• ClearLight™ Lens Technology provides high-definition optics for precision arc recognition
• Shade 5.0 side windows and oversized clear grind shield maximize downward and peripheral visibility, improving sense of surroundings
• Two lightweight lithium-ion batteries included with each system eliminate downtime

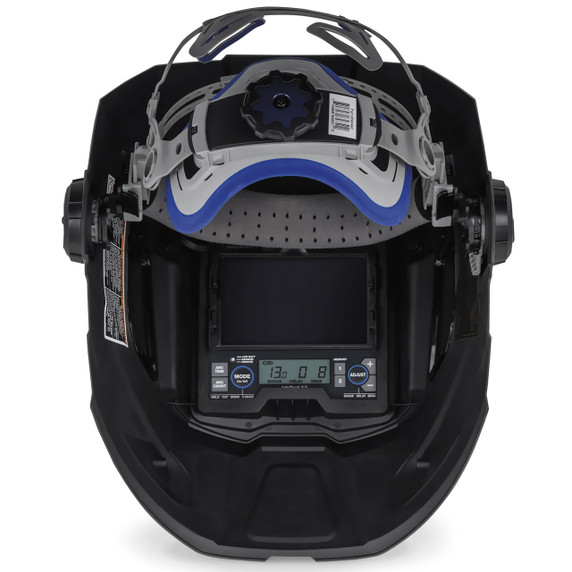

The T94-R features a 9 sq. in. viewing area with four independent arc sensors. Other features include digital lens controls and four operating modes (weld, grind, cut, X-Mode). ClearLight™ lens technology optimizes contrast and clarity in welding and light states. Design enhancements protect AD lens from dust and moisture. Aluminum heat shield reflects heat to keep lens and user cool.

The HEPA filter provides 99.97% filtration of airborne particulate including solid dust particles, metal fumes and mists. Prefilter extends life of the main HEPA filter. Integrated spark guard protects filter assembly from large pieces of debris. Filters provide protection from Hexavalent Chromium (Stainless Steel), Zinc Oxide (Galvanized Steel), Manganese, Aluminum, Nickel, Iron Oxide, Copper, Cadmium, Lead and Beryllium fumes.

This system is designed for extended wear with a lightweight, low-profile blower that allows for unrestricted movement and provides all-day comfort, reducing fatigue. Integrated shoulder straps provide a secure fit and equally distribute weight, alleviating lower back strain. Blower unit innovative features include dual air speeds that allow users to adjust the volume of air to maximize comfort in varied work conditions.

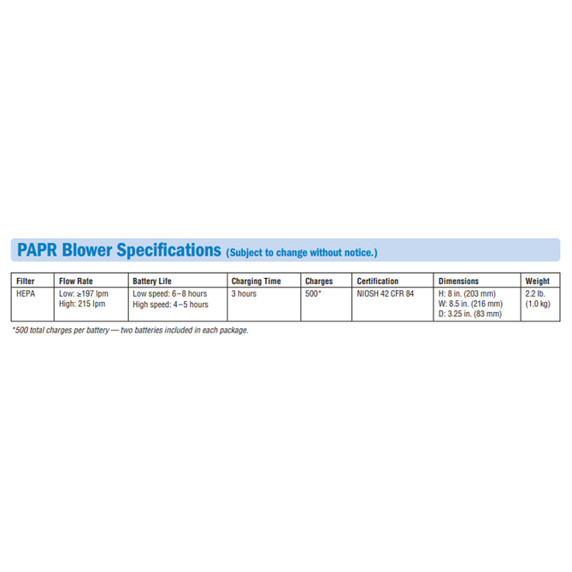

Audible and vibrating alarms notify users in noisy environments. Electronic control automatically adjusts fan speed to keep air flow constant. Quick-release belt for easy, one-handed on/off. Lightweight lithium ion battery provides extended battery life with no memory retention from frequent charging: 4-6 hours on high speed, 6-8 hours on low speed, 500 charges, 3 hour charge time.

Cut Mode:  Yes

Welding Shade:  Weld (8-13), Cut (5-8), Grind (3), X-Mode (8-13)

Number of Sensors:  4

Color:  Silver

Delay Control:  Yes

Grind Mode:  Yes

Helmet Weight (Oz.):  20.5

Lens Speed (Seconds):  1/20,000

Series:  PAPR

Shade Type:  Variable Shade

Viewing Area:  9 square inches

Sensitivity Control:  Yes

Magnifier Capable:  Yes

Includes:  T94-R welding helmet | blower unit and tube | belt | shoulder straps | flowmeter | (2) batteries with charger | replacement filters | tool bag

Consumables:  Battery, PAPR (244131) for blower unit; Battery, Helmet, CR2450 (217043); Cover Lens Assembly HDV, Front (287016); Cover Lens, Inside (216327); Grinding Shield HDV, Snap Lock (288765); Grinding Shield Tear-Off (258853)

Replacement Parts:  ClearLight 4x Auto-Darkening Lens (296787); Filter, Particulate (HEPA) (235673-2), 2 pack, or (235673-6), 6 pack, or (235673-36), 36 pack; Filter, Prefilter (235674); Filter, Prefilter, Nuisance OV Relief (268841); Spark Guard (2356760)

Warning:  Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Click Here for the Miller PAPR System Spec Sheet


Click Here for Miller's True Blue® Warranty Details
