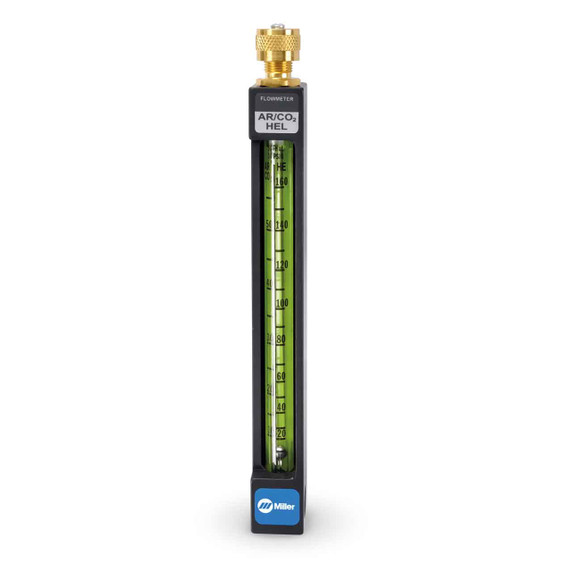

Miller 16531 Heavy-Duty Flowmeter, Argon/CO2/Helium, 30 psig

• Rugged aluminum housing protects flow tube on three sides.
• Extra-long flow tube. Expanded scales are easy to read and accurate within five percent of full reading.
• High-visibility-green scale background eases reading flowmeter from a distance and in low-light conditions.
• Shatter-resistant multi-scale flow tube. Tubes are made of shatter-resistant polycarbonate resin and feature separate scales for argon, C02 and helium depending on the model.
• Unique, self-centering flow ball guide ensures accurate readings even when installed at an angle.

Heavy-Duty flowmeter are designed to operate at inlet pressures of 30 PSIG . They can be attached to regulators or pipeline installations. Features include an extra-long flow tube made of shatter-resistant polycarbonate resin. Flow tubes have a unique ball guide which centers the ball in the tube and keeps it centered (competitors use a ball floating in a non-centering tube which allows the ball to float off-center resulting in greater flows than the reading indicates).

Series:

Division:

Gas:  Argon, CO2, Helium

Delivery Range:

Max Inlet Pressure:

CGA Fitting:  1/4" FNPT
