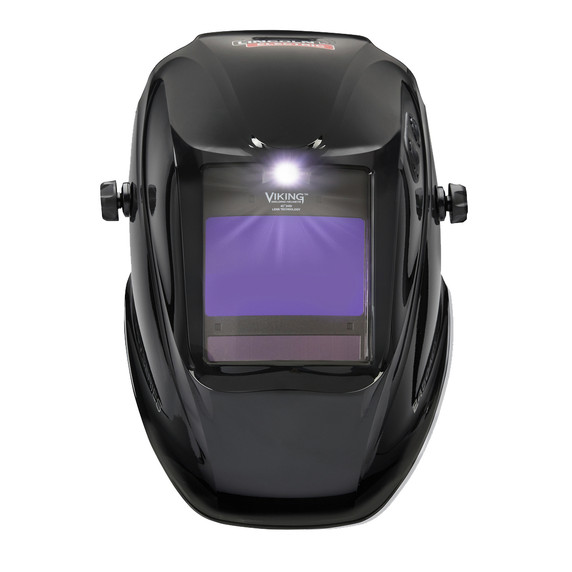

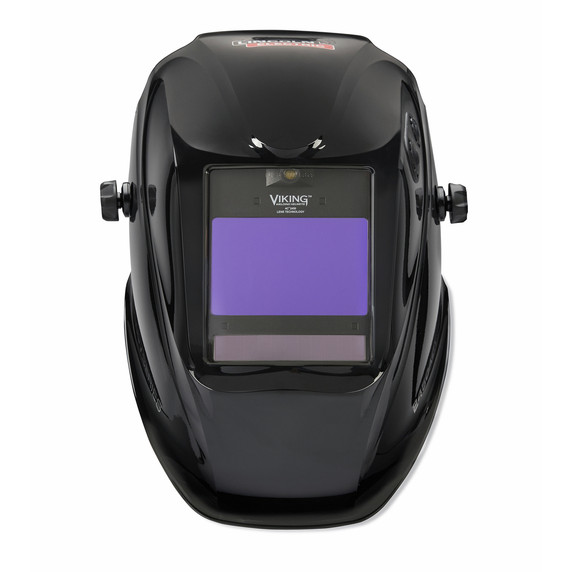

Lincoln Electric K3028-5 Viking 2450 Auto Darkening Welding Helmet with 4C Lens Technology, Black

Lincoln® Viking™ 2450 ADV Black Welding Helmet K3028-5 The Lincoln® Viking™ 2450 ADV Black auto darkening welding helmet features an internal, modular LED light and true color lens optics, with a large 9.3 square inch viewing area. The modular LED light illuminates dark working spaces for easier set up before the welding arc is struck. Once the arc is initiated, the smart LED light automatically turns off, extending battery life. The LED light automatically turns back on when the welding arc is extinguished. Light controls are conveniently located on the outside of the helmet. LED light module comes with AA battery and can be completely removed from the welding hood when not in use. The 2450 ADV comes with Lincoln's exclusive 4C® lens technology. Proprietary 4C liquid crystal display passes more true color through the lens in both light and dark states to create the clearest view of your work piece. The Viking 2450 welding hood has a perfect 1/1/1/1 optical clarity rating, meaning lens distortion and blurriness are completely eliminated, shade is consistent through every square inch of the lens and the welding arc looks crisp and clear at any angle. The Lincoln Viking 2450 auto darkening welding hood comes complete with Lincoln's X6 Headgear™ for superior comfort and has a three year lens warranty.Specifications: Optical Clarity: 1/1/1/1 | Shade Range: 5-13 | Viewing Area: 3.82 in x 2.44 in" (9.3 Square Inches) | Switching Speed: 1/25,000 Sec. | Number of Arc Sensors: 4 | Outside Cover Lens: 4.5 x 5.25| Controls: Shade, Sensitivity & Delay | Modes: Weld, Cut, Grind | TIG Amp Rating: 2 Amps | Power Source: CR 2450 Battery + Solar Cell | Hard Hat Compatible: Yes | Cheater Lens Compatible: Yes | Standards: ANSI Z87.1, CSA Z94.3, EN379| Warranty: 3 Years
}
• Digital Controls - Moisture and abrasion resistant digital UI for intuitive shade, sensitivity, delay and mode control.
• Intelligent, Modular LED Light - Lightweight, separately powered Smart LED light dynamically adjusts to your environment to improve users visibility of the weld cell, work piece and weld joint.
• Premium Optics - 4C Lens Technology, 1/1/1/1 Optical Clarity, and large 9.3 sq. inch viewing area
• Low Profile, External Controls - Integrated grind & LED light push button controls allow operators to adjust helmet functionality for each step of the fabrication process in seconds.
• All Day Comfort - Innovative X6 Headgear distributes weight, reduces pressure, and optimizes balance

Cut Mode:
Welding Shade:	5-13
Number of Sensors:	4
Color:	Black
Delay Control:	Yes
Grind Mode:	Yes
Helmet Weight (Oz.):	21
Lens Speed (Seconds):	1/25,003
Series:	2450
Shade Type:	Variable Shade
Viewing Area:	9.3 Sq. Inches
Sensitivity Control:	Yes
Magnifier Capable:	Yes

Consumables:

Replacement Parts:

Accessories:

Click Here for the Lincoln Electric Viking 2450 Welding Helmet Spec Sheet

Click Here for the Lincoln Electric Warranty Details
